## December 28, 2021

### Elevation XVIII: A Bigger Map

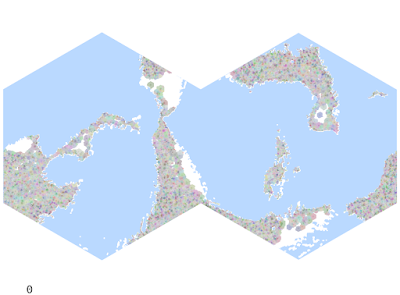

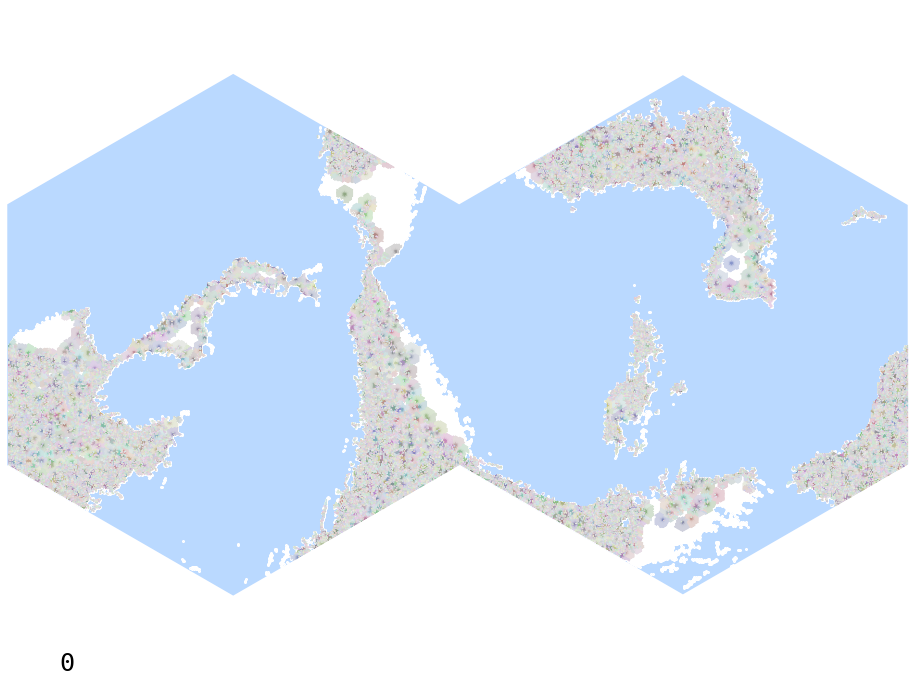

The map I've been using is about half the size it should be. So I wrote some code to generate a map of arbitrary size. I'm actually a little mad about it, since it took about half an hour to generate what took me months to figure out 3 years ago. But I'll be better for it.

The next step is to regenerate elevation and terrain, wind and currents, climate and all that good stuff.

If you're just starting out, don't make the same mistake I made; do this in a language that can handle big data efficiently. Python can barely chug along through this stuff.

## December 20, 2021

### Ex Nihilo III: River Travel

The first obstacle I encounter when finding river routes is that there's no immediate correlation between AP and river vehicles (barges, small ships, etc). So we begin with some initial thoughts and observations.

Almost all relevant river travel will be by barge or similar vessel. The navigability of a river will then be dependent on the depth of the river and to some extent its velocity - some rivers may be too fast to pole or tow against. Once width becomes an issue, the point is moot anyway.

The numbers I'm getting from my velocity model (I've since tweaked the width and depth equations slightly) appear roughly commensurate with the numbers ORBIS uses. They apply a constant 65km/day rate, which is about 1.6 mph. If I only consider 10 hrs of daylight travel, we can get that number up to 3.2 mph (ah, what if I used daylight hours based on latitude as my indicator? Thoughts for later). This indicates that river travel will only be faster than dirt roads or lower. However, the cost will be much cheaper than overland travel. This kind of problem can be left with partially incomplete information, as this makes the party's decisions much more realistic.

Assume a river with downstream velocity $v = 1.837$ mph. This is equivalent to a day's journey (10 hours) of 18.37 miles. For a party traveling on land with 3 AP, that's the equivalent of 6.123 mi/AP. My assumption here is that river travel works by the same AP travel rules as travel on foot.

By the same measure, moving upstream against the current is a much slower affair. ORBIS puts upstream motion (by poling, horse-hauling, or even tacking) at 15 km/day. Therefore, we can put an upper limit on navigable rivers at where this advantage becomes moot, about 2 mph of downstream velocity.

Consider two hexes, A and B. The river flowing from A to B is 26 ft deep, 612 ft wide, and has a velocity of 1.837 mph. There is also a high road which runs throughout.

Traveling along the road with 3 AP takes 2.56 total AP (thanks to the maintained road) and 0.85 days. However, since the river is not quite fast enough, rafting down takes 3.27 AP and 1.09 days. These differences can add up for a long journey.

Say we wish to travel back from B to A. The road journey takes 0.85 days as before. But fighting against the current slows our barge to 25.6 AP, 8.5 days!

This has a few implications for travel and trade. First, there will be a severe resource asymmetry for downstream collection centers. In this case, a good might be 10 times more expensive in B than in A! Due to the upfront costs involved, trade will always move by water if possible, regardless of small disadvantages in time. Second, travel will likely also be asymmetric, as it will often be faster to raft downstream and walk back upstream. In fact, we have real-world examples of this, where cheap flat rafts would be brought down the Mississippi then disassembled in New Orleans, after which the crews would travel on land back up the river.

So it seems we will need a few different pathfinding tools:

• Routes by land only
• Routes favoring water wherever possible
• Routes combining water and land for maximum speed

## December 16, 2021

### Ex Nihilo II: Routing

I worked the number of total polities down to the low 2000s. This is probably still pretty high, but it takes a while to simulate warfare between so many cities, so I'll call it here.

The next thing is to place roads, according to Higher Path rules. I briefly tried a modification, where the number and type of roads was determined by the total infrastructure, and not the infrastructure category. For example, rather than primary, secondary, and tertiary routes, a hex with an infrastructure of 61 could have 1 low road (35), 1 cobbled road (20), 1 cart track (6), and finish out the 6 total connections with trails (0). This all adds up to $35\cdot1 + 20\cdot1 + 6\cdot1 + 3\cdot0 = 61$ total. However, I didn't much like this as the resultant network was weird-looking, with all routes being pulled towards the local center.

It's got kind of an artsy feel to it, but massive infrastructures would be necessary to make any kind of even network. So I went back to the old way but will continue to think about it.

It's a busy-looking map, but remember that this is primarily DM-facing (more accurately, computer facing). All we need to know for now is that there is a road from A to B of type C. From hence we can apply A* route-finding algorithms to find optimum travel paths between hexes. I'm using the AP weights from here, assuming a normal walking pace. The function will return both the route taken and the cost in AP, so that travel times can be determined for the trade network.

Note that these don't take into account the convenience of river travel if available. A comprehensive model will present the players with a plan involving the cheapest method: a boat from A to B, then overland from B to C, then finally upriver to D. For this, I'll probably rely heavily on the fascinating work by ORBIS. In the same manner, I need to re-address sea travel, so those are next on the list.

## December 13, 2021

### Ex Nihilo I: Starting Off

It's been a while since I've had much time to devote to my projects. I'm starting to get the itch to actually play again, and the problem rears its head that it's just not done. Nor will ever be done. I've spent a good deal of work on the tribal development system, which would eventually give rise to settled civilizations and more complex societies. I still want to develop that out, but a project of this magnitude is lifelong.

My thought at the moment is to generate a more or less fully populated world, without the benefit of the procedural history system. I would lose a lot of that organic weirdness, like the records of wars and such, but it would significantly shorten the timeline to a version that could be used in an actual game.

Instead of slowly planting and growing cities, I just place them according to the design principles I developed last year: the carrying capacity is determined first by the desirability of the location and then by proximity to nearby cities. This yields between 15,000 and 20,000 cities, ranging in size from villages of 200 to cities of about 75,000 inhabitants.

 Infrastructure map: humans (green), elves (red), dwarves (blue), halflings (orange)

Not sure why halflings seem to dominate but there is plenty of time for modifying the variables later. This also brings to the front the issue that the world is roughly twice as small as it should be, and is incredibly habitable. Nothing wrong with that, but I do want to rework the map size (which gave me so much trouble 3-4 years ago) to be closer to Earth's surface area.

On the first pass, each city is its own hegemony, leading to a very busy map. About 86% of the habitable surface has at least 1 point of infrastructure, which is almost nothing anyway.

 Hegemony map, very cluttered

The next step is to collapse these thousands of independent tribes into larger hegemons. Through the sword. This thins out the cities and yields a nicer political map.

 Hegemony map, starting to firm up

This is approximately 10k hegemonies and about 25k cities. This is more than a pretty good start to create a playable world. I'll tweak this process some more, then begin to add resources and trade networks.

## April 9, 2021

### Detail XIII: A Case Study VII

One full region is now generated:

There's plenty of material here, of course, but I can do better, particularly with the addition of features. Let's zoom in on the capital city here (Hex 25, infrastructure 42).

The first and easiest thing to place is a bridge. Hex 25 has a high enough infrastructure to be able to place bridges (as opposed to ferries or fords). This river has a Strahler number of 4. Therefore, the two hexes where the roads cross the river will have bridges on them, notated by black squares (for now).

I recommend reading through this series of posts to understand where I'm going next. We want to know what features this hex has by virtue of the specific layout. Moreover, it'd be nice if this were a true function: that is, for a single input of hexes, we have a single output set of features. That will allow us to save some storage space, since all we'll need to know is the original layout.

To place these features, we loop through the hexes from highest to lowest infrastructure - not worrying about whether the hex is itself civilized. That is, for a hex and its six neighbors, if there are 4/7 civilized hexes present in that set, then the central hex is of Type 4, quite good. Depending on the exact distribution of those civilized hexes (Type 4 has 8 possible layouts), the possible features could be a large keep with a village, a manor house with a village, an aquifer, or a quarry. Once a feature has been identified, all hexes in the set are removed from the list: this prevents the map from getting too busy.

I've only added a few things to the list given by the Tao above. But there are a lot of configurations which are empty - again, that's fine. Scarcity breeds innovation.

In addition to the bridges, we generate a medium keep with village and church, a toll road, several mines, and a quarry. Additionally, there are several outlying hexes with no specific feature, but which in this case would most likely be farms or other "non-village/city" communities of a few families.

I could also make use of the wilderness and deep country features discussed here; but that would need be on a different layer, not player-facing. Still, could be a useful DM tool.

## March 26, 2021

### Detail XII: A Case Study VI

Next up: lakes.

Lakes were complex to handle back in Detail VI: Lakes, but this project should be much simpler; again, I am placing them manually. Hex 15:

There are two important things to note here. One, I trace a river through the center of the lake to ensure that drainage is calculated properly. Second, the road hugs the river pretty nicely this time.

What I've got so far:

## March 19, 2021

### Detail XI: A Case Study V

Let us take stock of the map so far, with Hexes 24, 25, and 26.

The terrain blends very nicely. But these settlements need to be connected - at least, if the infrastructure exists to support them. The infrastructures are as follows: Hex 24 with 9, Hex 25 with 16, and Hex 26 with 7. Not a great deal of population here to maintain a good trail, but it's enough to at least have a road of some kind.

Road placement uses an A* algorithm with defined endpoints. In the cases here, the endpoints are the defined settlement hex and the edge exits; if no settlement exists I'll just define two exits.

The route weight is a bit complex but generally tries to pick the route with the most gradual elevation change. These being rather flat hexes, we'd expect a more or less straight road. There's some complexity when it comes to rivers. Unless a 20-hex has at least 12 points of infrastructure, it can't build a bridge or ferry. If it has less than this, it can't have a simple ford either if the river is larger than 2 Strahler points. Those rules yield the following network:

Pretty good. Nothing complex to overcome in this particular slice. We can get slightly more interesting results by adding a bit of a terrain penalty. Hex 26 is mostly marshy terrain - not necessarily impassible, but the road will definitely hug firmer terrain where available. So we'll add in a bit of a penalty for such.

Eh. Kind of interesting. The penalty weights probably need tweaking but I'll wait until I have more use cases.

## March 17, 2021

### Detail X: A Case Study IV

Under normal circumstances, I would place the rivers at this point. However, I am adding them by hand. Rivers are saved as a list of the hexes through which they flow, which makes this part more or less trivial. The Strahler numbers are saved for each in-flow hex and so the width of the river can be drawn accurately.

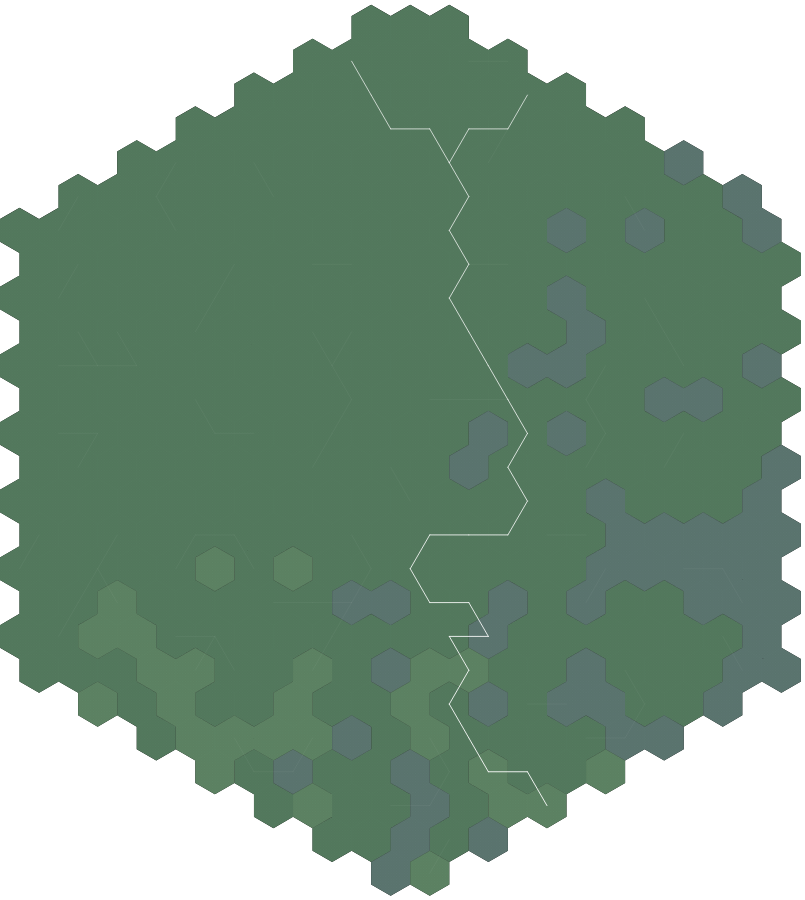

 Hex 25; river in white temporarily for emphasis

The next step is determining which hexes are settled and which are wild. The infrastructure for Hex 25 is $I=16$. This isn't quite as simple as placing, for instance, 16 of 400 hexes as "settled." I reviewed the system for determining the relationship between infrastructure and number of settled hexes back in Detail III: Infrastructure. Briefly, each hex contributes to the total infrastructure based on the number of settled hexes that it itself borders.

There are then two broad scenarios for placing these hexes. The first is the case here, where I already know the "core" location of the main settlement within the hex. I want the other settled hexes to "cluster" around this one, so the base chance of settlement ($P_s = I/400$) is modified based on proximity to the constraints (there may be more than one in other cases): $P_s = \left(\frac{I}{400}\right)^{|s - c|\cdot t}$, where $|s-c|$ is the distance between the 1-mile hex $s$ and the constraint $c$, and $t$ is a factor such that the sum of probabilities is equal to $I$. This added factor makes convergence a lot faster. Thanks to Scott for this idea!

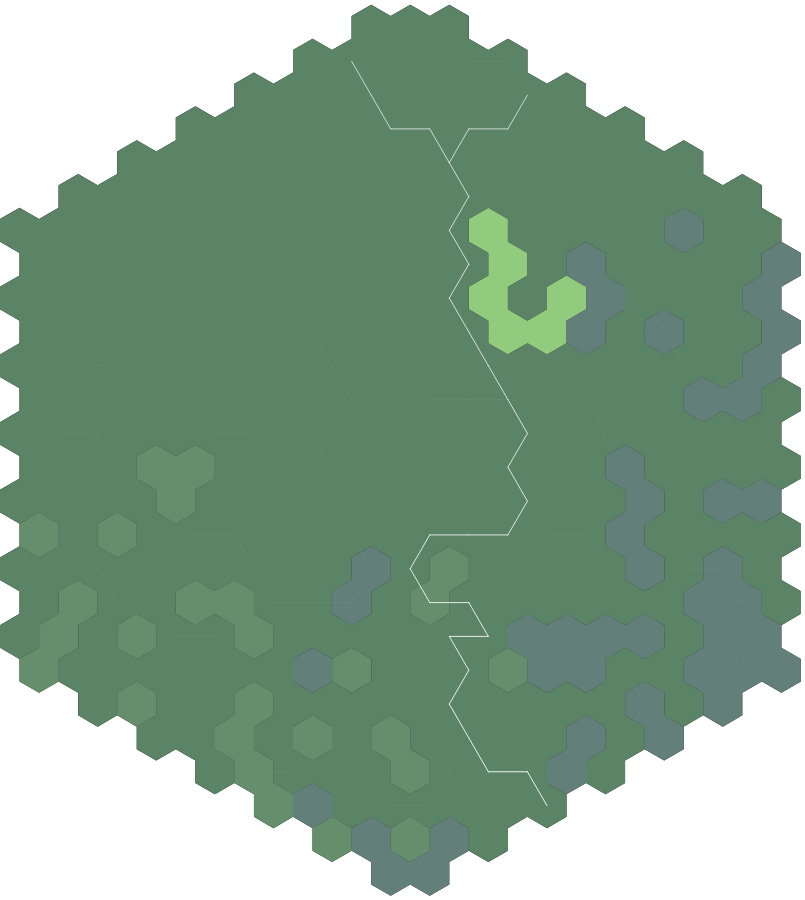

For now I'm coding the settled hexes as grassland. The algorithm yields two Type VII hexes (1) and four Type VI hexes (2) for a total of $2\times1 + 4\times2 = 16 = I$. Perfect! In this case, they are all contiguous, but this need not be the case. Just luck of the draw and a consequence of the low overall infrastructure. 16 is really not very much at all.

The second scenario (and honestly, more common) is a 20-hex without a named settlement, and thus no specific constraint. Settled hexes will then tend to cluster around river features or roads. Therefore, we can do a similar adjustment with the distance to a random river or road:

However, most of the 20-hexes I'm looking at initially will have settlement features. This will come in handy later on.

## March 15, 2021

### Detail IX: A Case Study III

I previously covered terrain placement in Detail III and a bit in Detail IV. At the time, I was thinking of the effect that infrastructure had on the terrain, and so I used the terms somewhat interchangeably. The terrain type was simplified into "primary" and "secondary," but there are many cases where neighboring 20-hexes may have several different types between them. So the system needs to be able to take that into consideration.

At first, I just used a random choice between the available neighbor types, yielding something a bit like this:

This isn't really great, because the shape of the 20-hex is immediately identifiable.

To the surprise of no one, I'll turn to my old friend IDW. Normally, IDW is concerned with interpolating numerical values. Instead, for each hex, I'll determine the weights assigned for each potential terrain type. The 20-hex terrains are as follows:

Darker green is shortleaf pine (coded as c), lighter green is longleaf pine (n). Not a huge difference but adds some flavor. The green-brown is marshy terrain and not in view here. So we see that Hex 24 will be dominated by shortleaf pine and begin to transition to longleaf towards the south. Running the algorithm for the weights on a 1-hex near the bottom yields:

{'c': 1.3e-06, 'n': 1.9e-06}

So the longleaf pine is much more likely to be generated near the bottom. To use this in a random selector, I normalize these numbers to sum to unity.

{'c': 0.401, 'n': 0.599}

So there is about a 60% chance that that 1-hex will be longleaf as opposed to the dominate shortleaf.

Quite satisfying.

### Detail VIII: A Case Study II

I had previously worked on height generation here: Detail I: One Mile Hexes. The underlying terrain is one of the more fundamental issues to tackle, as it determines road and river placement.

However, as we shall see, it's not of first priority for this particular Case Study. In the general case, the topography is important for placing rivers and other features; it'll be important here for roads, but rivers are all predetermined.

With that in mind, the altitudes of each 20-hex are defined as best I can. The 20-hex I'll work on first is designated No. 24. Its neighbors are 14, 15, 23, 25, 34, and 35. The heights for each of these must also be defined, or at least for most of them if available.

With these in hand, we can use IDW to get weights for each 1-hex based on the distance to the centers of the neighboring 20-hexes. The IDW output is heavily dependent on the number of neighbors $k$ and the exponent $x$ used to control the drop. The following graph shows the altitudes of a line of hexes across the middle of 24 and 25, with $k=2,\, x=2$.

Applied to all subhexes, the altitude is as follows (heights exaggerated for display, these low heights do not show up well in greyscale):

Some artifacts are still just barely visible, because $k=2$ means that only the central 20-hex and the closest neighbor will matter. Expanding that to $k=3, x=3$ may yield better results. There are still some artifacts, but these will probably get washed out when we add a little noise.

The amount of noise is determined by the topography type. Hex 24 is coded as "hills," and so the standard deviation of the gaussian function is set to $\sigma=150/6$. I'm still playing with those values: that is not a lot of height variation over 364 sq miles. Hex 25 has a topography of "plains," so the gaussian is contracted to $\sigma=25/6$.

That's not looking too bad. I considered a further "relaxation" step, where each hex would spill a bit of its height into its lowest neighbor. But that would require information we don't have in the self-contained system for the border hexes, and might lead to edge artifacts when 20-hexes are combined. So for now this seems good enough.

## March 11, 2021

### Detail VII: A Case Study I

The more work I have to get done in real life, the more my thoughts turn to working on The System. Particularly, I hadn't worked on the 1-mile generator in a while, and it was brought back to the front of my memory while proselytizing for the Higher Path recently. To try and refine a lot of that spaghetti, I decided to remake the area around my home into a (more) low-tech fantasy region.

Of course, Tao (Alexis) of the Higher Path bases his world on the late medieval/early Renaissance Old World. This side project will be similar, with the terrain and some of the demography based loosely in the "real world."

A major advantage of this project is that it makes the final product much more personal. At some level, a project based solely on imagined and random numbers has little soul - particularly in the development stage, where whole universes are destroyed and remade with a click. However, designing an alt-version of an area I'm intimately familiar with not only has soul, it has stakes. I've got real physical and spiritual blood in this land, and that naturally translates into greater care and eye for detail. If something is made up from whole cloth, there can be no accountability. These are places that I know personally - the decision to erase or augment them is felt more deeply.

To avoid totally doxxing myself (is anyone really anonymous online?), placenames will be concealed for now - and perhaps remade anyway to be more "fantasy."

I started with a 20-mile hex (20-hex hereafter) map of the whole State. Working from waterway and ecological maps, I assigned rivers and major vegetation types.

Normally, I would calculate hex-by-hex drainage for the river width. However, in the larger system I use, one 20-hex only drains to one other. In the real world, its commonplace for more than one river to flow through a single area of this size. It's over 364 square miles, of course. Instead, I used the Strahler number. The other advantage of using real waterways is that I can avoid the many issues I had with automatically placing rivers on the 1-hex maps. I had something that worked but it was kludgy, and hopefully I can return to it with more knowledge and a fresh brain in the future. Rivers can be manually input either way, and saved for future processing.

I'm a bit less strict on roads - since the modern era has roads criss-crossing every which way, I decided to preserve a handful of existing connections but largely rewrite the road network, and allow my algorithms to handle the internal road placement.

To determine settlement placement, I used only cities that were incorporated in the State by 1900. This cut the list down to 47. I use Alexis' infrastructure system to distribute infrastructure points, by dividing the 2010 population of each city by 10. This part made me very grateful for my code on the bigger map - doing this by hand was a chore. If I make any changes to the populations, I'm going to have to either do it all over again, or figure out how to apply the infrastructure algorithm I've already written to this subset of hexes.

But for now it is what it is. Road type and the presence of bridges or ferries (as opposed to simple fords) is determined by the infrastructure number, so its important to know.

My general plan for tackling and describing this project is as follows.

• Quickly review the height algorithm. The area is best described as "flat and low," so we'll see if that generates any problems.
• Refine the terrain assignment such that there is a "smooth" interpolation between 20-hexes of different terrain types. Like the height algorithm, discussed in previous posts, the ultimate goal here to create a distribution where the hex edge cannot readily be identified.
• Because I'm working from a scale of 20 miles all the way down to 1 mile in a single step, I think I lose of some of the beauty of Alexis' working down to 6 miles and then to 2 miles. So I'll revisit the infrastructure assignment as well to try and beautify it. I'm not sure if the low infrastructure will help or hurt here but we'll see.
• Once the settled/wilderness hexes are placed, roads and trails/tracks can be placed. There's always tweaking to be done when A* pathfinding is involved.
• From there I'd like to consider types of features (of civilization) which could be placed based on waterways, settlement, and roads.
• Lakes or coastlines. I may get to this one earlier; it's not as crucial since I'm manually placing these features.
As each piece of the puzzle is added, the gameability grows richer.
